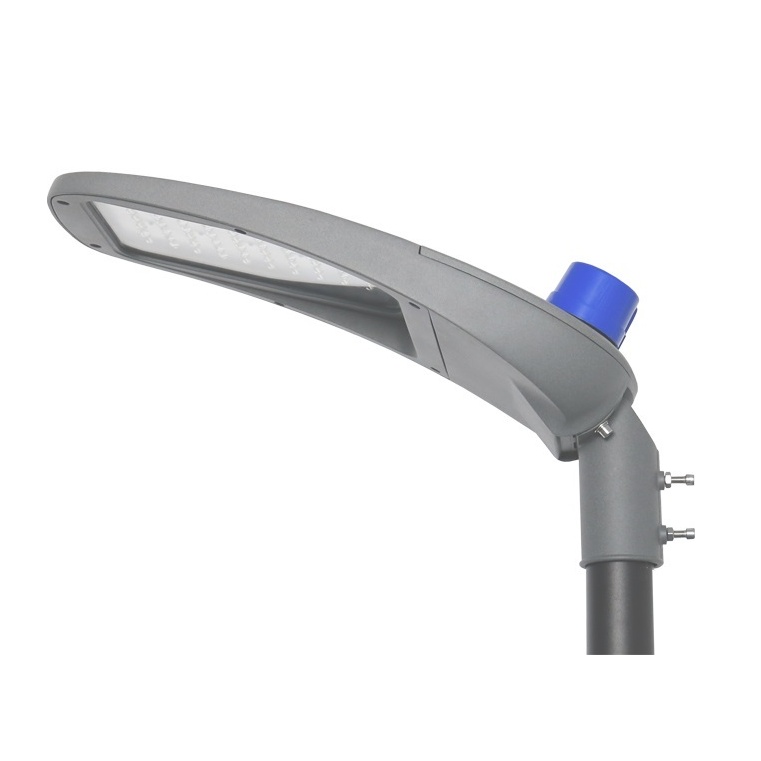

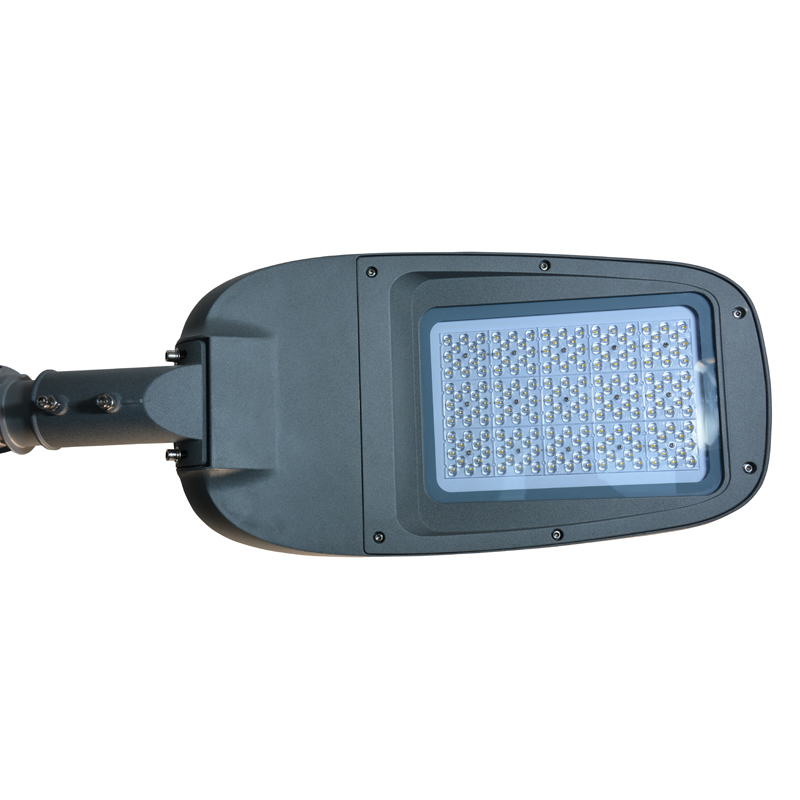

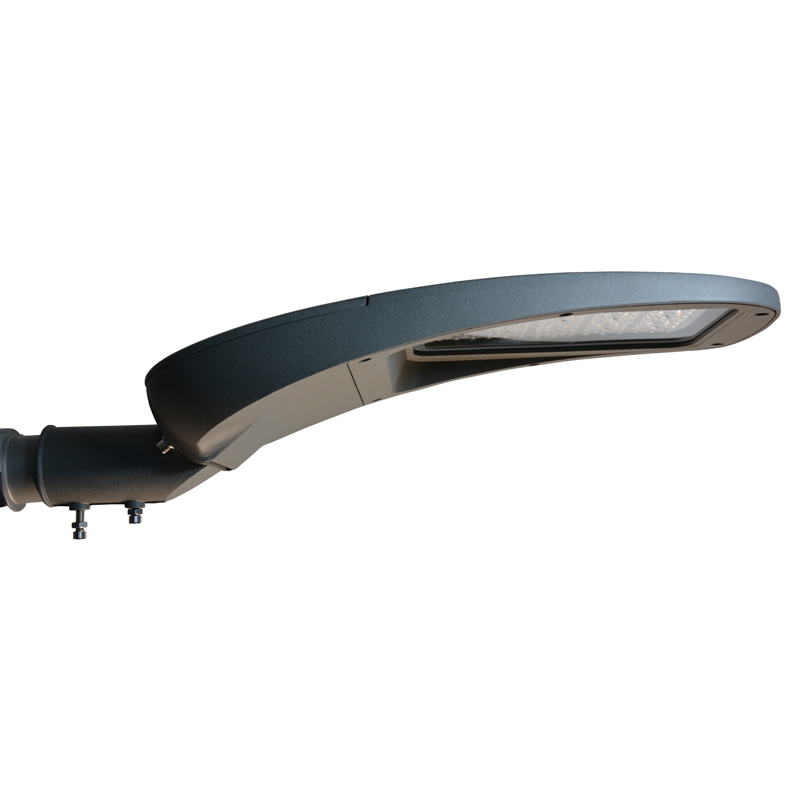

30W/50W/100W/150W/200W led street light

30W/50W/100W/150W/200W led street light

30W/50W/100W/150W/200W led street light

the Product Parameters

30W/50W/100W/150W/200W led street light

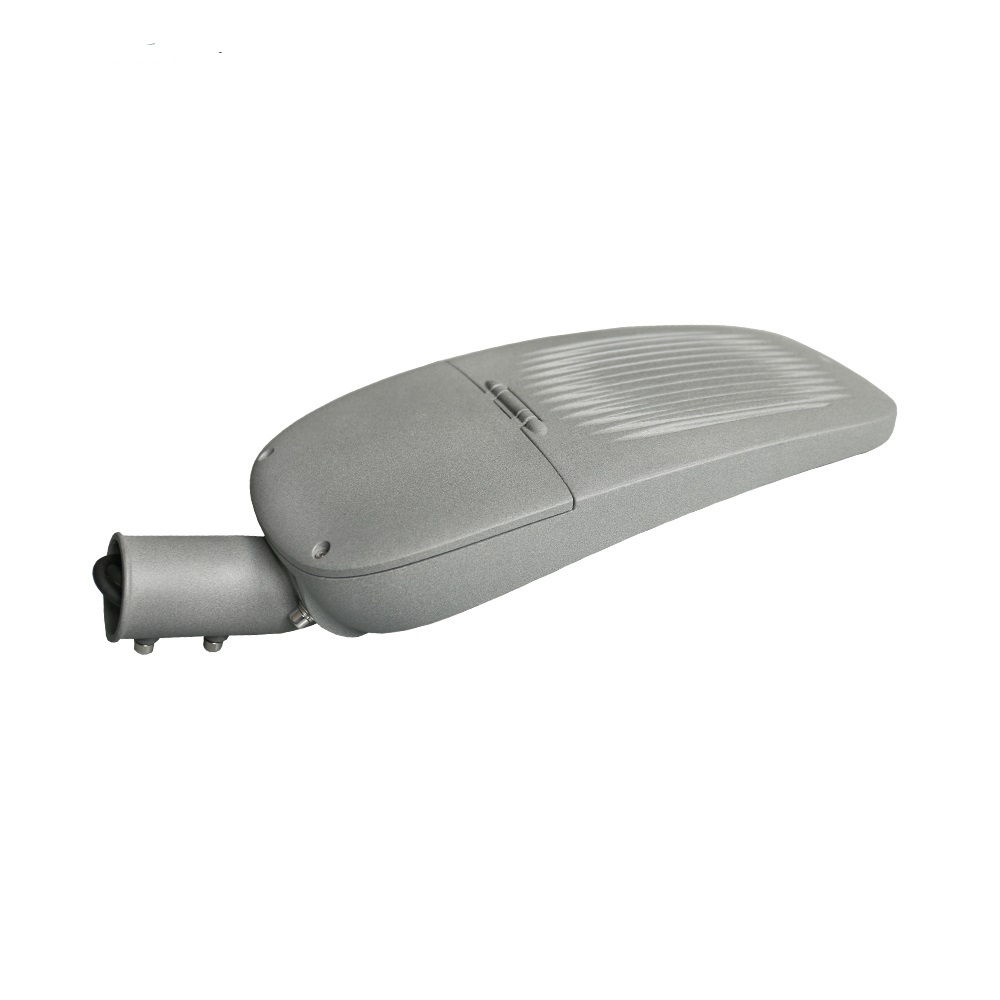

1. Die-casting aluminum radiator, excellent heating dissipation;

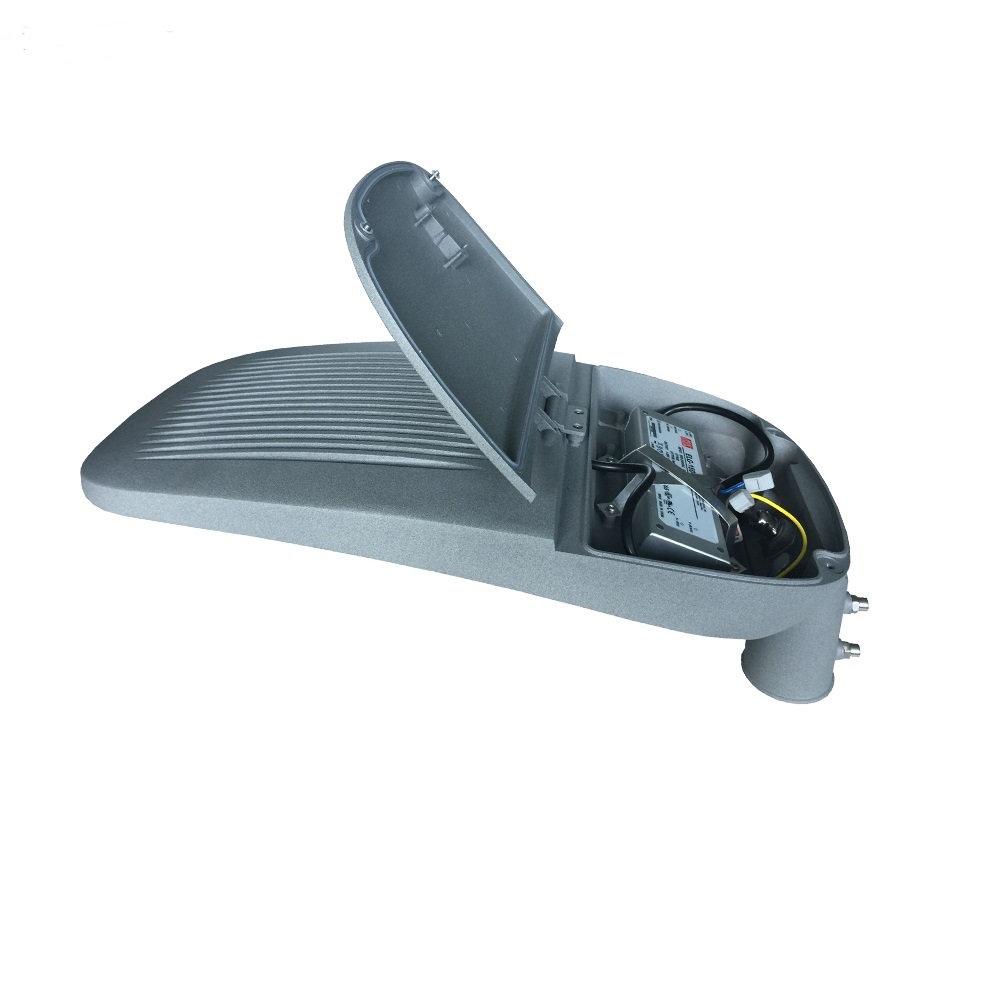

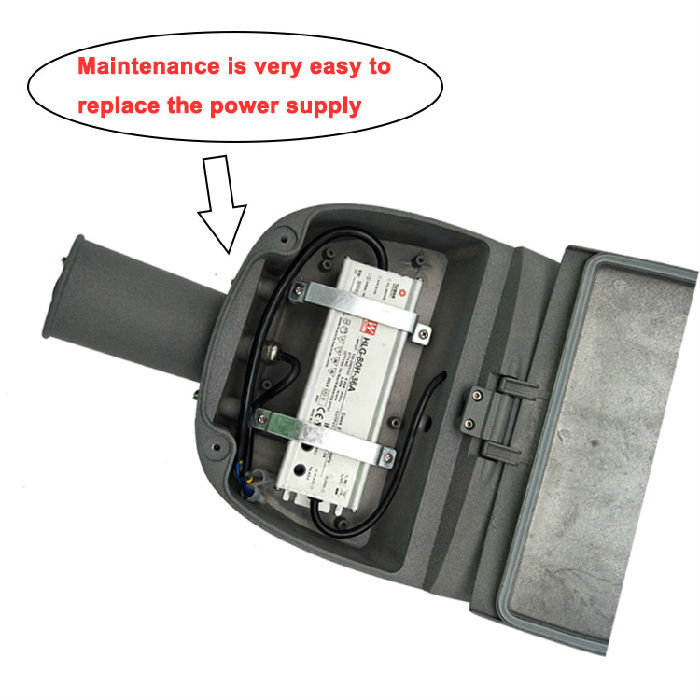

2. Tool free maintenance, the back cover can be opened to check or replace driver very easily;

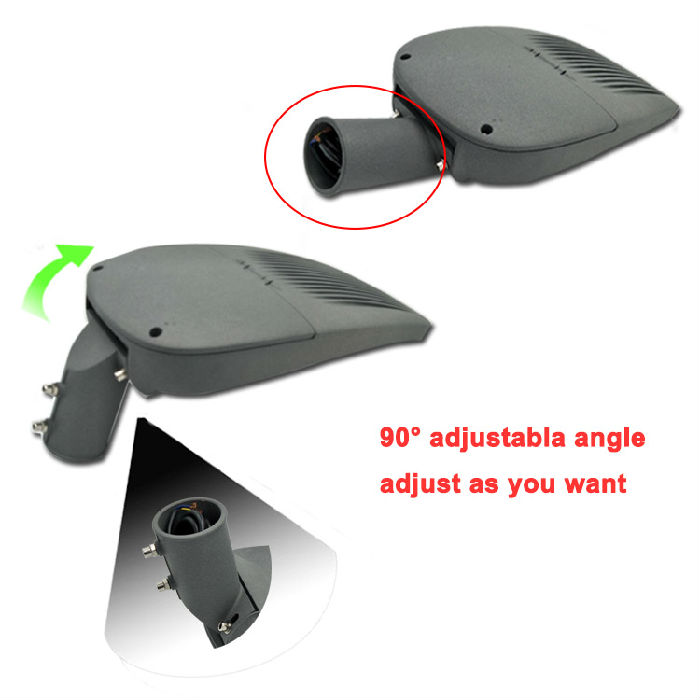

3. Mounting angle adjustable, suitable for horizontal poles or vertical poles.
4. Wide-range input voltage, AC100-277V.

Model NO

JW-ST50W-A

JW-ST80W-A

JW-ST100W-A

JW-ST150W-A

JW-ST200W-A

Luminous Efficacy

120lm/w

120lm/w

130lm/w

120lm/w

120lm/w

LED Qty

72pcs

96pcs

180pcs

180pcs

240pcs

Dimension

507*210*130mm

616*259*186mm

677*305*187mm

677*305*187mm

850*366*198 mm

CCT

3000K, 4000K, 5000K, 6000K

CRI

>80Ra

Power Factor

0.95PF

Input Voltage

AC90-305V/347V/480V

IP Rating

IP67

Warranty

5 year

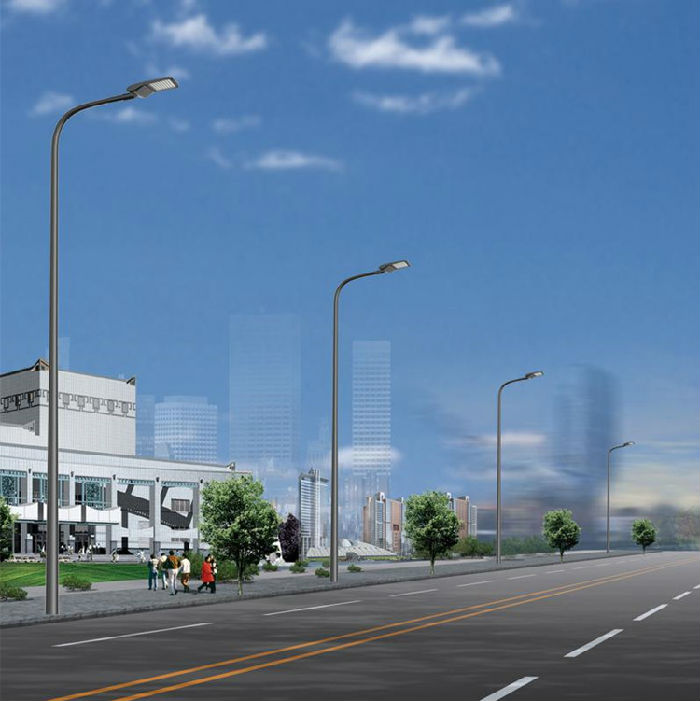

 Application:
