50W-400W led tunnel flood light

50W-400W led tunnel flood light

the Product Parameters

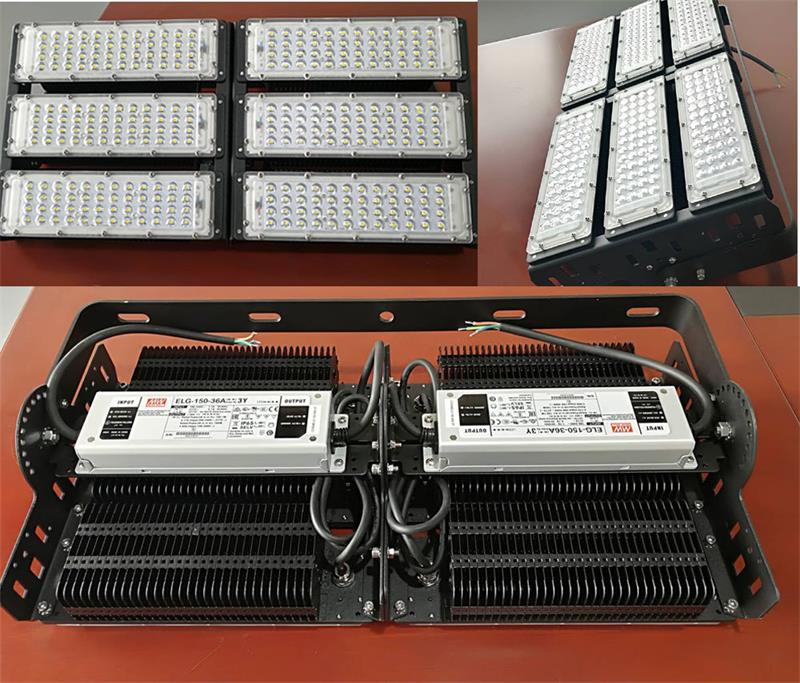

Product description:  130Lm/W 400W 300W 200W 150W 100W 50W LED tunnel floodlight

Item No.: JW-400W/300W/200W/150W/100W/50W
LightLED Typephilips SMD3030
Luminous Efficiency130Lm/W
CCT(K)3000K / 4000K / 5000K / 5700K  / 6500K
CRI> Ra80
Power SupplyMeanwell / Sosen Driver
Lifespan (Hrs)> 50,000Hours
ElectricityInput Voltage(V)100-277VAC 347V/ 480V 50/60Hz
Dimming function1-10V,PWM,Resistance, Dali dimmable
Power Consumption(W)400W/300W/200W/150W/100W/50W
Sensor controlMicrowave / daylight / Photocell sensor
Beam angle60° / 90° / 120°  / 60x150°
ReplacementMetal Halide / HPS / HID / Halogen  lamps
StructureMaterialsAluminum housing + PC lens
Base(Standard Design) 3 cores outlet +US/EU/US/AU plug
Protection GradeIP65 waterproof
    CertificateCE RoHS 5 years  warranty

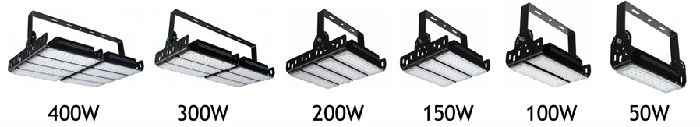

led tunnel flood light series:


ModelPowerLumensReplacement   Lamp  size (mm) N.W/pc  (Kg) G.W/CTN  (Kg)ctn  size(cm)
JW-400W400W52000m800-1000WL373*W630*H130    11.18     12.6666*45*20
JW-300W300W39500Lm600-1000WL283*W630*H130     9.15      10.266*35*20
JW-200W200W26000Lm600-800WL373*W315*H130     5.61       6.641*36*20
JW-150W150W19500Lm500-600WL283*W315*H130     4.62        5.232*36*20
JW-100W100W13000lm400-500WL238*W315*H130     3.3        4.135*27*20
JW-50W50W6500Lm200-350WL193*W315*H130      2.1     5  (2pcs/ctn)35*23*24
